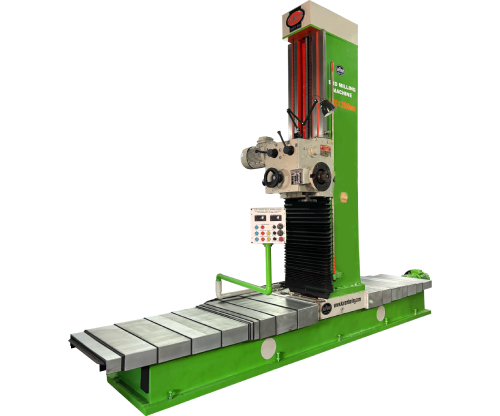

H-Beam End Face Milling Machines

Facing on a milling machine is the process of cutting a flat surface perpendicular to the axes of the milling cutter. This process removes the material by rotating the facing tool in the counterclockwise direction as the table feeds the work piece across the cutter.

Technical Specifications: (in mm)

Technical Specifications: (in mm)

END FACE MILLING















Model #

KEFM 80

KEFM 125

KEFM 150

KEFM 200

KEFM 315

KEFM 350

KEFM 450

Vertical Travel of Milling Head on Column

1050

1150

1250

1350

1550

1850

2050

Horizontal

Travel of Column on Bed

2250

2350

2550

3050

3550

4050

5050

MILLING HEAD















Model  #

GNMH 80

GNMH 125

GNMH 150

GNMH 200

GNMH 315

GNMH 350

GNMH 450

NO OF SPEEDS

4

4

4

4

4

4

4

SPEED RANGE

120 210 300 500

120 210 300 500

120 210 300 500

100 180 275 400

75 140 200 300

75 140 220 300

25 50 75  100

MAIN MOTOR

3 HP

5 HP

7.5 HP

10 HP

15 HP

20 HP

30 HP

SPINDLE DIA

90 MM

120MM

120MM

120 MM

140MM

140MM

180MM

HORIZONTAL
TRAVERSE

80 MM

100MM

110MM

125MM

140MM

150MM

150MM

HORIZONTAL
OPERATION

HAND OPERATED

HAND OPERATED

HAND OPERATED

HAND OPERATED

HAND OPERATED

HAND OPERATED

HAND OPERATED

MAIN SPINDLE TAPER

I S O 50

I S O 50

I S O 50

I S O 50

I S O 50

I S O 50

I S O 50

CUTTER CAPACITY ON MILD STEEL

80MM

125MM

150MM

200MM

315MM

350MM

450MM
